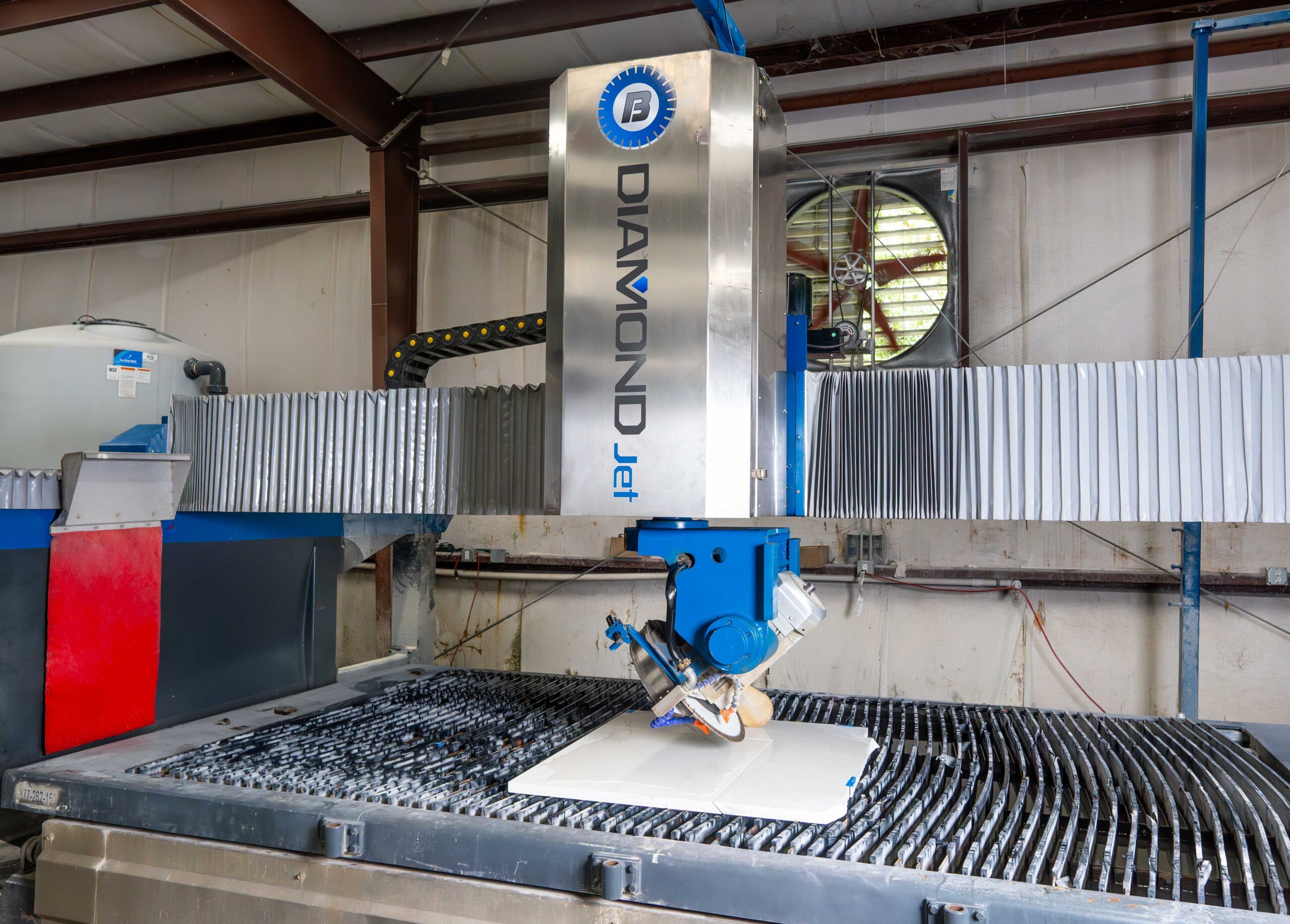

DiamondJet: Where Power Meets Precision
Features
- 5 axis interpolation
- Automatic rotating head from 0°- 360°
- Automatic blade tilting from 0°- 90°and lock
- Hydraulic 85° tilting table

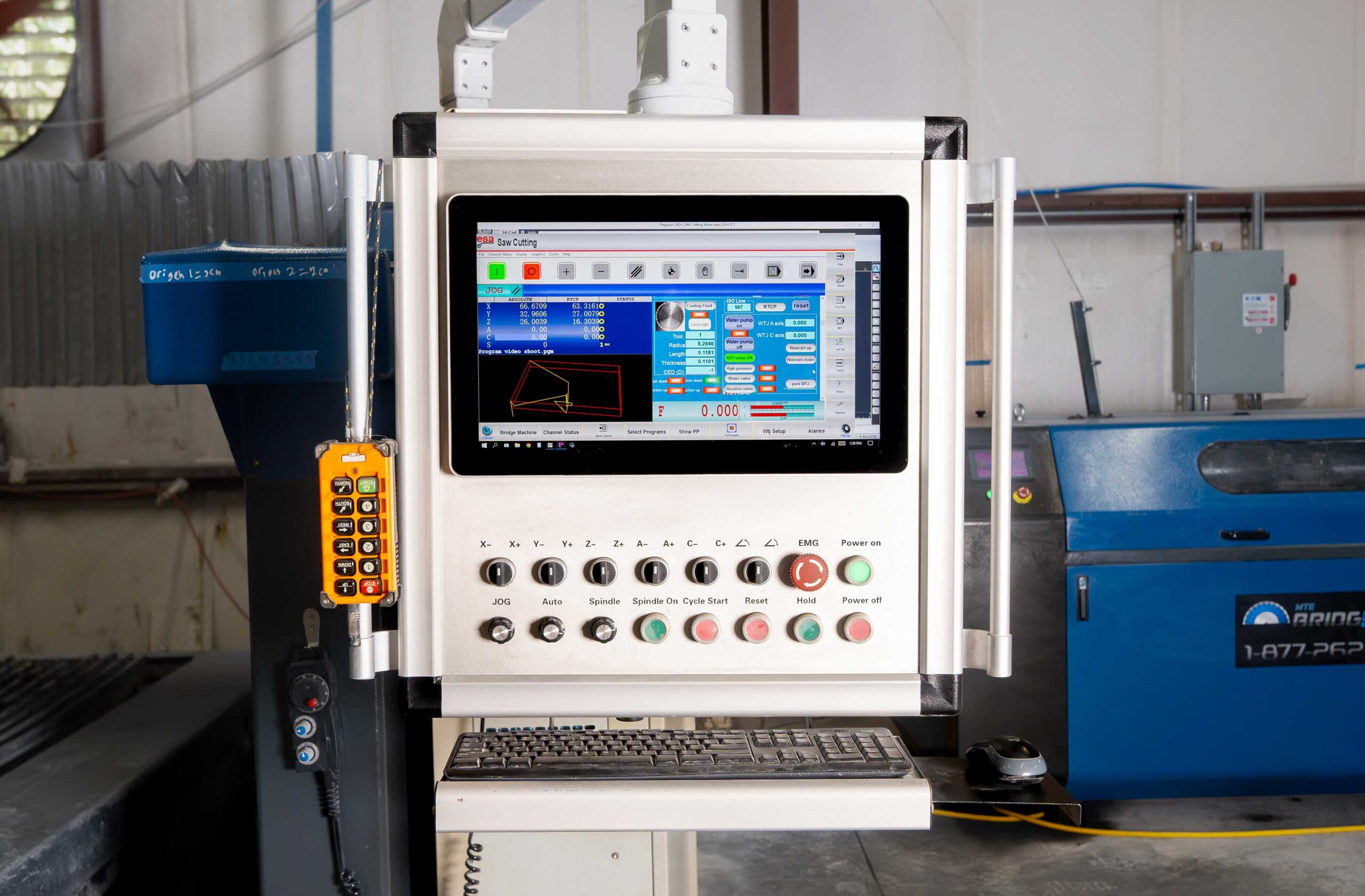

- Easy to use interface with 19 ” color touch screen
- Cutting trajectory laser tracer
- Yaskawa servo motors, precision gearboxes, and linear guides with recirculating ball bearing
- Automatic grease-lubrication of sliding guides and oil bath on X, Y-axis
- RTCP tool point tracking function
- Vacuum system for workpiece handling
- Photo slab for nesting
- Nesting manual/automatic
- USB port / EtherCAT port / CANopen connection
- Teamviewer incorporated in machine to remote control machine’s PC
Specifcations
- Minimum Disc Diameter w/o waterjet: 13.8″
- Maximum Disc Diameter w/o waterjet: 25.6″
- Minimum Disc Diameter w/ waterjet: 13.8″
- Maximum Disc Diameter w/ waterjet: 19.7″
- Work Table Dimensions: 137.8″ x 78.7″
- Max length horizontal cutting: 137.8″
- Max blade cutting thickness: 7.5″
- Max waterjet cutting thickness: Less than 2″
- Max lifting stroke: 19.7″
- Main motor power: 15kw
- Cutting frame reciprocating moto power: 1.15kw
- Crossbeam shifting motor power: 1.15kw
- Hydraulic station motor power: 2.2kw
- Lifting motor power: .85kw
- Waterjet motor: .4kw x 2kw / 1.3kw x 5kw
- Pressure pump: 37kw
- Gross power: 27.65kw
- Water consumption: 2 m3 /h
- Dimensions (L/W/H): 248″ x 165.3″ x 122″
- Gross weight: 19841.6lbs
Warranty/Tech Support
- Bridgesaw.com 3-year warranty
- Complimentary tech phone support for the life of the machine
- Technicians on staff, not subcontractors
